HY-230NC Circular Saw Macine

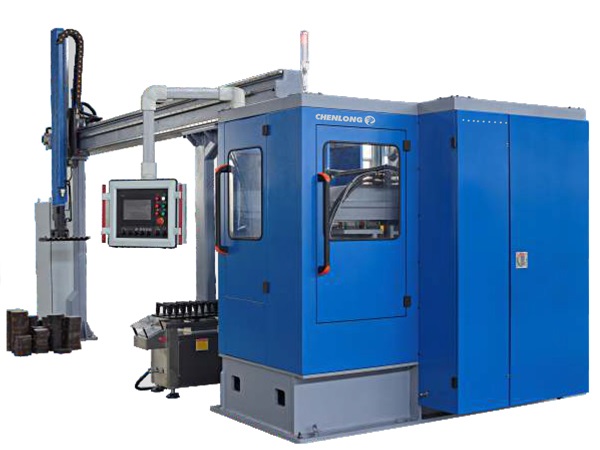

CL-230NC Circular Saw Machine

✔ Servo Feeding and Material Feeding System are Accurate;
✔ 5 Tumes the Cutting Speed of Traditional Sawing Machine;
✔ The Main Clamp Adopts Three-point Clamping of International Fashion. Clamping is Firm and Reliable;
✔ With Active Deflection Feeding, Material Surface Damage Can be Avoided, and Feeding Precision is Improved;
✔ Withe the Cooperation of High Rigidity, High Precision Spindle Gear Box and Backlash Elimination Mechanism, it Stabilizes Feeding, Significantly Improves Tool Life;
✔ One-key Start, Dialogue Touch Imput, Simple and Quick Operation.

hr@chenlongtech.com Get Latest Price

MODEL			CL-230NC
Cutting Capacity	Bar	●	Ø70~230 mm	Ø2 3/4"x9 1/16"
	Angle Material	■	70~160 mm	2 3/4"x6 11/16"
	Round Tube	○	Ø70~230 mm	Ø2 3/4"x9 1/16"
	Square Tube	□	70~160 mm	2 3/4"x6 11/16"
Head Spindle	Use TCT Superhard Circular Saw Blade		Ø750 mm, T3.0 mm
	Pin Hole and Aperture		4xØ21xPCD120xØ50 mm
	Spindle Motor		37 kW
	Spindle Speed		20~70 rpm
	Cut Feed Mode		AC Servo Motor+Ball Screw /Horizontal Feed
	Main Clamp Way		Hydraulic Type/Vertical and Horizontal Clamping of Each Group
	Saw Blade Debris Removal Device		Active Round Wire Brush
	Gear Gap Compensation Device		Through-type Magnetic Power Brake
Feeding Clamps	Feeding Drive Mode		AC Servo Motor+Ball Screw
	Feeding Clamp Way		Hydraulic Clamped
	The Material Front End Removes the Length		10~99 (Optional)
	Material Back-end Material Length		85 mm+α(α is not enough to cut the length of a workpiece
	Single Feed Cut Length		6~800 mm
Automatic Feeding Device	Allow the Length of Material		2000~6000 mm
	Supply Mode		Preloading/Hydraulic Lifting
Hydraulic Device	Hydraulic Pump Type		Preloading/Hydraulic Lifting
	Hydraulic Drive Motor		5.5 kW
	Hydraulic System Rated Pressure		7 MPa
	Hydraulic Oil Capacity		200 L
Cutting Fluid Cooling Device	Cutting Fluid Motor		0.19 kW
Size and Weight	Weight(Machine+Rack)		7320 kg
	Size(LxW)		7300x3910 mm

Cutting stock to length all day, every day? With this high speed circular saw machine, you just input the number and length you want. The machine handles the rest!

Features

Accepts up to a 750 mm blade.
Cuts up to 230 mm round tube.
Inverter-driven speed system is infinitely adjustable. You can fine-tune it to fit a given material. varible speeds (20-70 rpm) let you make quality cuts in many kinds of material.
37 kW blade motor runs on 380-volt 3-phase power.(Voltage can be customized make base on different country )
Design gives this circular saw the structural strength to make burr-free cuts in large material.
Automatic system makes the operator’s job easy. Just put the material in and other storage material on the roller rack . The vise will feed it until all repeat cuts are made.
You can program the length, number of pieces,and so on
Touchscreen interface makes it easy to set up the automatic material feeding, hydraulic vise clamping, and cutting.
Controller displays the length of cut and the current operation.
Series of user-adjusted switches determines the cut length.
You can switch the machine to manual mode for everything except feeding.
Material feed system includes adjustable floating vise.
Saw uses up to multiple feed between cuts to achieve a maximum cut length 9999 mm when feeding material.
5.5 kW motor controls the hydraulic vise—enough clamping force to push and pull over and keep the material in place.
Vise gives you the option to adjust the speed and clamping pressure.
Dial indicator shows the vise pressure and speed, so you can check the clamping and pace for precision.
Rugged steel construction weighing 7320 kg. minimizes vibrations for years of accuracy.
Oil mist coolant system improves the cut quality and extends the life of the blade and the machine.
Machine Designed for convenient maintenance.
Large operator safety guard protects you from flying metal debris.
Emergency light flashes if the machine detects a problem or safety issue.
Replacement parts are in stock for fast shipping.
We cover this circular cold saw with a 1-year parts warranty.
Our experienced reps, all with hands-on machine experience, are here to provide lifetime technical support by phone.

1. Saw Blade Deflection Shock Device		Tungsten Carbide Parallel Block
2. Dispenser		Pneumatic/Reciprocating
3. Automatic Centralized Grease Lubrication Syetem		Timely Quatitative Forced to the Oil
4. Tool Micro-lubrication System		Quasi-dry Intermittent Oil
5. Chip Conveyor		Chain Plate Type/Continuous or Intermittent Operation
6. Work Lamp		LED/Waterproof and Dustproof

1. Electric Control Box Heat Exchanger		Closed High Efficiency Heat Exchange System
2. Centrifugal Oil Mist Recovery Machine		Multi-level Filtering, Energy Saving and Environmental Protection
3. Cluster Feeding Device		The Whole Bundle of Material, Long Material Cutting Preferred
4. Third Clamp		The length of the material 20mm+α(α is not Enough to Cut the Length of a Workpiece)
5. Hydraulic Wire Brush		Active Removal of Debries
6. Long Material to Undertake Device(Discharge Device)		A Variety of Ways Flexible Choice, can be Equipped with Robots Expected Code Material
