Features

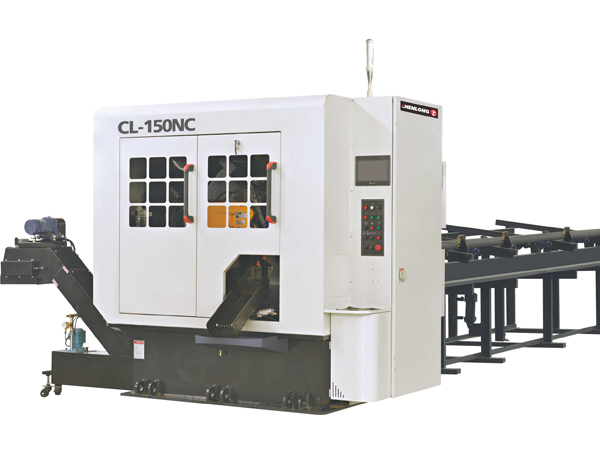

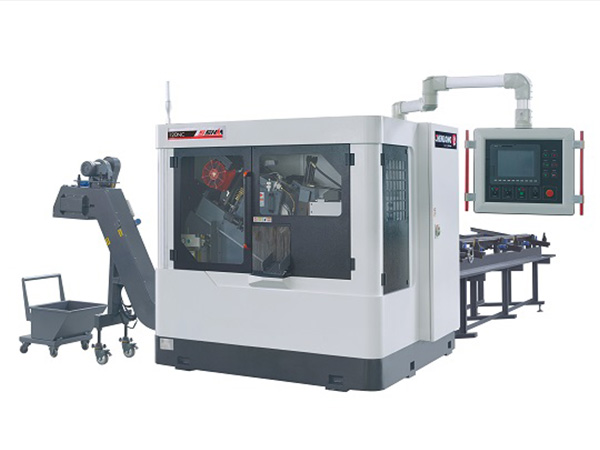

The machine is a universal high-speed metal circular saw, especially suitable for high-speed and precise cutting of various metal pipes and bars.
Human Machine interface and PLC centralized control are adopted.
Data such as cutting length and material tail length are input through Human Machine interface and controlled automatically.
Mitsubishi servo motor and ball screw feed system are used to control the cutting length accurately.
Choose disposable alloy toothed saw blade as cutting tool.
The rotation speed of spindle cutter is designed with the function of stepless regulation.
Using servo motor feeding, the Maximum length of single feeding is 800 mm.
The feeding device is designed with slow positioning function.
Cluster feeding rack, allowable Loading material length 3M~8M
Equipped with pneumatic distributor, it has the function of material head and tail classification.
Designed universal clamping device, suitable for different material shape without changing clamping device
Servo motor to feed and easy to set up the feeding speed .
Multiple feeding can be set, cutting length is not limited.
Various cutting lengths setting to meet the requirements of Cutting of Complete set Material.
It has the function of no material automatic shutdown and automatic calculation stopping, which is convenient for management.
It is equipped with quasi-dry saw blade lubrication cooling device to improve the service life of the saw blade.
Workpiece clamping of the machine is four-point type vise, and AC servo motor drives ball screw feed to cut-off.
There is an automatic lubrication device at the fulcrum of the head movement, which makes the machine run smoothly, reliably and has a long service life.
Easy to operate and maintain, easy to replace and adjust.
It has optional manual mode and automatic mode for operation.
The whole working cycle: feeding, clamping, cutting and discharging are all automatically controlled by NC. Manual responsibility is for feeding and collecting materials.
Cutting surface is smooth and burr-free.
Equipment:Hydraulic vise, Oil Pressure Distribution Clamping Device, Automatic Chip Conveyor, Oil mist device, One piece Saw blade, One set Tool and Tool box
