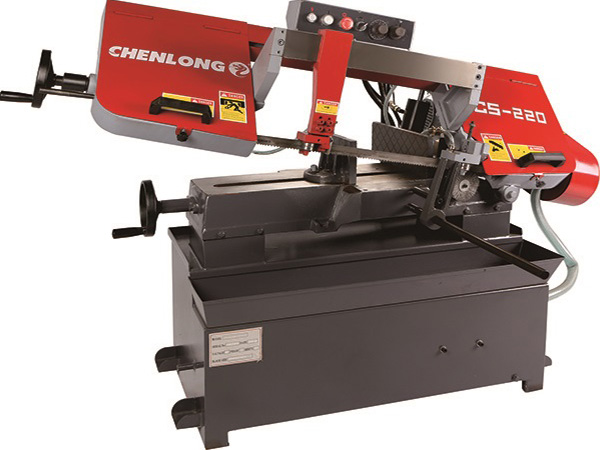

CS-220 Manual Band Saw Machine
Manual Band Saw Machine

This CS-220 manual band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.

✔ Pivot Type
✔ Swivel Vise
✔ Manual Downfeed

clsales@chenlongtech.com Get Latest Price

MODEL CS-220
Cutting Capacity Ø220 mm Ø 8 2/3"
400x100 mm 15 3/4 W"x4" H
+45° 320 mmx100 mm 12 3/5" Wx4" H
Drive Capacity Main Motor 1.5 kW
Hydraulic Motor /
Coolant Pump 0.06 kW
Blade Speed 21, 34, 43, 60 m/min 69, 111, 141, 197 fpm
Blade Size 27x0.9x3045 mm
Workpiece Clamping Manual
Blade Tensioning Manual
Main Drive Wormwheel Drive
Table Height 640 mm
Machine Size (LxWxH) 1700x610x1130 mm 67"x24"x44 1/2"

This Manual horizontal band saw is a machine with cutting capacity round 220 mm and square 400x100 mm. With a welded steel framework, the saw offers decades of precision.Runs on 380-volt three-phase power, so you can use it practically anywhere.
220 mm for round and 400x100 mm for square cutting capacity.
Features

  • Accepts standard 27x0.9x3045 mm blades.
  • Miters 45° cutting by swivel the vise .
  • Variable blade speed 21/34/43/60 m/min.
  • Stop rod makes sure that your material will stop at the same length every time to deliver repeatable results.
  • Comes standard with adjustable bearing blade guides that you can move as close to the material as possible for accurate cuts.
  • Handwheel to adjust the blade tension
  • Weight is 410kg.
  • CHENLONG covers this metal band saw with a 1-year parts warranty.

1. Blade Cleaning Brush
2. Length stop
3. Security Switch
4. One Piece of Bi-metal Saw Blade
5. One Set of Tools with Tool Box
6. Instruction Manual

1. Separate Material Roller Table
