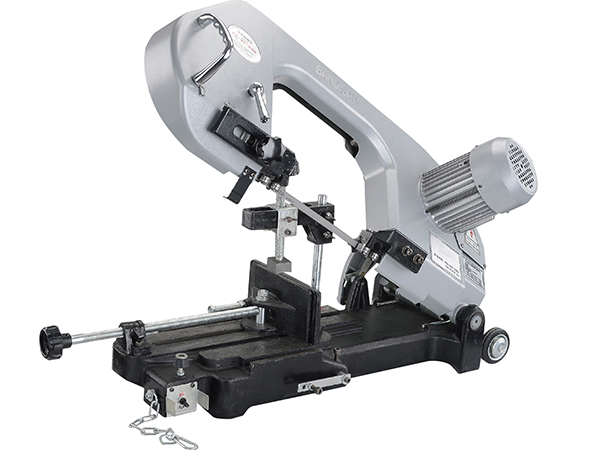

This DLY-18F1 manual band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace hacksaws and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Pivot Type
✔ Swivel Vise
✔ Manual Downfeed
Model | DLY-18F1 | ||
Power | 250 W | ||
Voltage | 110 V/220 V | ||
Frequency | 50 Hz/60 Hz | ||
Blade Size | 13×0.65×1745 mm | ||
Blade Speed | 0.65 m/s | ||
Max Cutting Capacity 90º | Round Pipe | Ø 180 mm | 7” |
Solid Round Steel | Ø 100 mm | 3 15/16” | |
Square Pipe | 180×200 mm | 7”x7 7/8” | |
Max Cutting Capacity 45º | Round Pipe | Ø 100 mm | 3 15/16” |
Solid Round Steel | Ø 100 mm | 3 15/16” | |
Square Pipe | 100×100 mm | 3 15/16”x 3 15/16” | |
N.W/G.W | 61/68 kg | ||
Machine Size | 950×310×400 mm | ||
Packing Size | 970×385×470 mm | ||
20” Container | 135 sets | ||
40” Container | 270 sets |
The DLY-180 portable band saw runs on 220-volt power. You can use it almost anywhere. We designed this manual model for small shops and hobbyists.
Features
1. Blade Cleaning Brush
2. Length stop
3. Security Switch
4. One Piece of Bi-metal Saw Blade
5. One Set of Tools with Tool Box
6. Instruction Manual
