Home>Products> Manual Band Saw>DLY-125W1 Miter Band Saw Machine

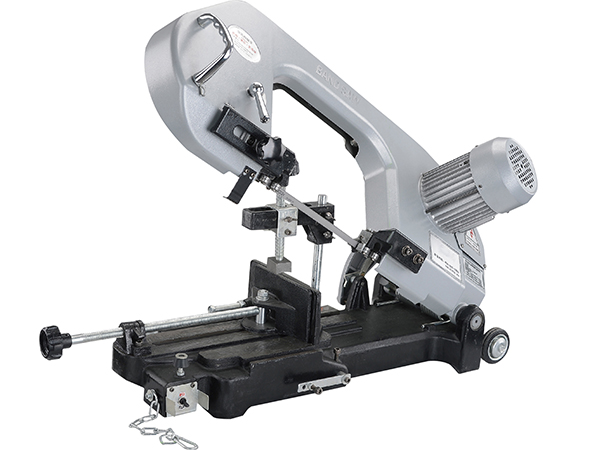

DLY-125W1 Miter Band Saw Machine
Miter Band Saw Machine

This DLY-125W1 manual band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace hacksaws and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.

✔ Pivot Type
✔ Swivel Vise
✔ Manual Downfeed

clsales@chenlongtech.com Get Latest Price

Model DLY-125W1
Power 680 W
Voltage 110 V/220 V
Frequency 50 Hz/60 Hz
Blade Size 13×0.65×1332 mm
Blade Speed 1~1.9 m/s
Max Cutting Capacity 90º Round Pipe Ø125 mm Ø 4 9/10”
Solid Round Steel Ø50 mm Ø 1 9/10”
Square Pipe 150×125 mm 5 9/10”x 4 9/10”
Max Cutting Capacity 45º Round Pipe Ø55 mm Ø 1 1/6”
Solid Round Steel Ø50 mm Ø 1 9/10”
Square Pipe 50×80 mm 1 9/10”x 3 1/7”
N.W/G.W 16/20 kg
Machine Size 600×270×350 mm
Packing Size 680×340×450 mm
20” Container 250 sets
40” Container 500 sets

The DLY-125W1 portable band saw runs on 220-volt power. You can use it almost anywhere. We designed this manual, variable-speed model for small shops and hobbyists.
Features

  • Straight cut with 125 mm round capacity. And vise adjustment to 45 degree angle cut with 55 mm round capacity
  • Accepts standard 13 x 0.65 x 1332 mm blades.
  • Angle changes by swivel vise
  • Stop rod makes sure that your material will stop at the same length every time to deliver repeatable results.
  • Weighs just 20 kg, so you can transport it to project sites.
  • CHENLONG covers this metal band saw with a 1-year parts warranty.
  • We keep most replacement parts in stock for fast deliveries.
  • Includes lifetime technical support . Call us up or email to us whenever you run into a problem with the saw or need application advice.

1. Blade Cleaning Brush
2. Length stop
3. Security Switch
4. One Piece of Bi-metal Saw Blade
5. One Set of Tools with Tool Box
6. Instruction Manual

1. Separate Material Roller Table
