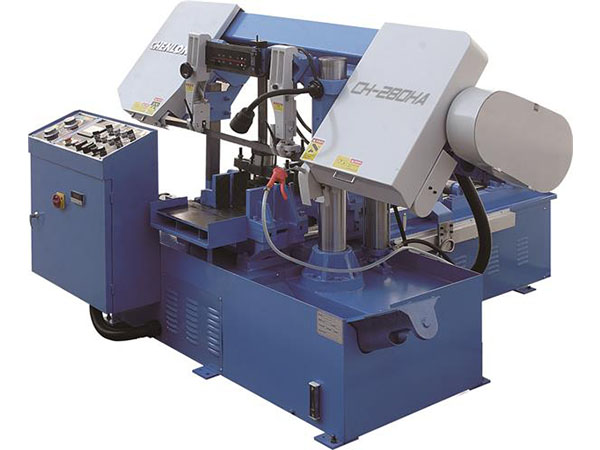

This CH-280HA fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Double Column Type
✔ Fully-automatic
✔ Hydraulic Downfeed
MODEL | CH-280HA | |||
Cutting Capacity | 0° | ● | Ø280 mm | Ø11" |
0° | ▅ | 320 mm Wx280 mm H | 12 7/8"x11" | |
0° | bundle | 200 mm Wx130 mm H | 7 7/8"x5 1/8" | |
Drive Capacity | Main Motor | 2.2 kW | ||
Hydraulic Motor | 0.75 kW | |||
Coolant Pump | 0.06 kW | |||
Blade Speed | 20~80 m/min by inverter | 66~262 ft/m | ||
Blade Size | 27x0.9x4100 mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Hydraulic | |||
Main Drive | Wormwheel Drive | |||
Multiple Feed | 400 mmx9 times | |||
Work Vise | Hydraulic | |||
Table | ||||
Weight | 1500 kg | |||
Machine Size (LxWxH) | 2200x1900x1700 mm | 86 3/5"x74 4/5"x66 9/10" |
The CH-280HA automatic feed bandsaw's hydraulic system can automatically clamp, cut, and feed bundles. The durable steel frame maintains accuracy over years of hard use.The saw frame keeps vibrations to a minimum and results in accurate cuts and long blade life. The carbide blade guides and bearing are to promote longevity.
Features
1. Power Blade Cleaning Brush
2. LED Work Light
3. Automatic Feed Roller
4. Automatic Work Height Control
5. Automatic Chip Conveyor
6. 2M Separate Material Roller Table
7. Hydraulic Blade Tension
8. NC Control(10 set cutting process)
9. Inveter
10. Hold Down Device for Bundle Cutting
11. Security Switch
12. One piece of Bi-metal Saw Blade
13. One set of Tools with Tool Box
14. Instruction Manual
1. 2M Separate Material Roller Table
2. Variable Vise Pressure for Tube Cutting
