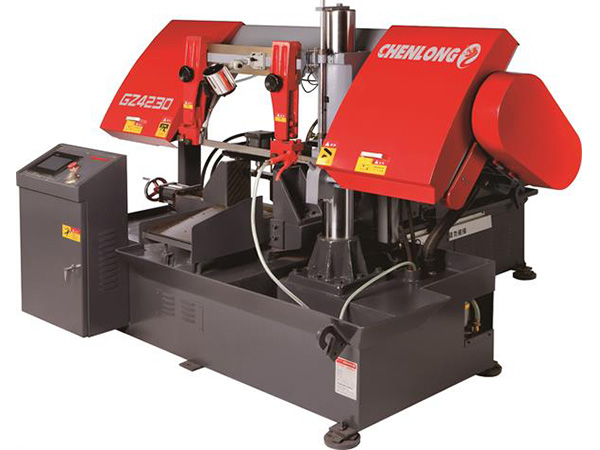

This GZ4230 fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Pivot Type
✔ Fully-automatic
✔ Hydraulic Downfeed
MODEL | GZ4230 | |||
Cutting Capacity | 0° | ● | Ø300 mm | Ø11 4/5“ |
0° | ▅ | 300 mm Wx300 mm H | 11 4/5“x11 4/5“ | |
Drive Capacity | Main Motor | 3.0 kW | ||
Hydraulic Motor | 0.75 kW | |||
Coolant Pump | 0.06 kW | |||
Blade Speed | 25, 45, 63, 81 m/min | 98, 177, 248, 318 ft/m | ||
Blade Size | 34x1.1x4115 mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Manual | |||
Main Drive | Wormwheel Drive | |||
Multiple Feed | 500 mmx9 times | |||
Table Height | ||||
Weight | ||||
Machine Size (LxWxH) | 2060x2195x1450 mm | 81 1/10"x86 2/5"x57 1/10" |
The GZ4230 double column automatic feed bandsaw's hydraulic system can automatically clamp, cut, and feed bundles. For high-speed cutting of ferrous and non-ferrous metals including aluminum, steel, other different kind of materials. NC controlled production for efficiency, precision and flexibility.
Features
1. Power Blade Cleaning Brush
2. LED Work Light
3. Automatic Feed Roller
4. NC Control
5. Security Switch
6. One Piece of Bi-metal Saw Blade
7. One Set of Tools with Tool Box
8. Instruction Manual
1. 2M Separate Material Roller Table
2. Variable Vise Pressure for Tube Cutting
3. Automatic Chip Conveyor
4. Hydraulic Blade Tension
5. Inverter
