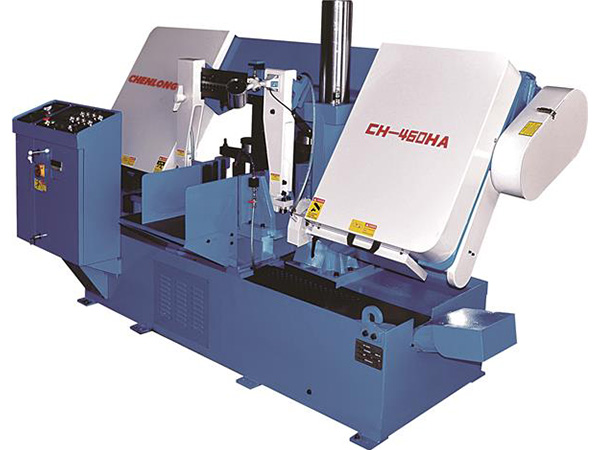

This CH-460HA fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Double Column Type
✔ Fully-automatic
✔ Hydraulic Downfeed
MODEL | CH-460HA | |||
Cutting Capacity | 0° | ● | Ø460 mm | Ø18 1/10" |
0° | ▅ | 460 mm Wx460 mm H | 18 1/10"x18 1/10" | |
0° | bundle | 310 mm Wx230 mm H | 12 1/5"x9" | |
Drive Capacity | Main Motor | 4 kW | ||
Hydraulic Motor | 0.75 kW | |||
Coolant Pump | 0.06 kW | |||
Blade Speed | 20~80 m/min by inverter | 66~262 ft/m | ||
Blade Size | 41x1.3x5450 mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Hydraulic | |||
Main Drive | Wormwheel Drive | |||
Multiple Feed | 400 mmx9 times | |||
Work Vise | Hydraulic | |||
Table Height | ||||
Weight | 3500 kg | |||
Machine Size (LxWxH) | 2850x2200x1900 mm | 112 1/5"x86 3/5"x74 4/5" |
We built this 3-phase CH-460HA automatic band saw to save you time and money. The durable steel frame maintains accuracy over years of hard use. This new saw features a strong dual-column design, automatic material feed, a parts counter and a built in coolant system. In keeping with an exceptionally high standard of machine quality, this CHENLONG automatic band saw incorporates infinitely variable band speed and cutting force for optimum cutting results.
The automatic feed will help reduce scrap, labor costs, and errors, while the simple design and good qaulity components will ensure easy service and reduced down-time.
The saw frame keeps vibrations to a minimum and results in accurate cuts and long blade life.
Features
1. Power Blade Cleaning Brush
2. LED Work Light
3. Automatic Feed Roller
4. Automatic Work Height Control
5. Automatic Chip Conveyor
6. 2M Separate Material Roller Table
7. Hydraulic Blade Tension
8. NC Control(10 set cutting process)
9. Inveter
10. Hold Down Device for Bundle Cutting
11. Security Switch
12. One piece of Bi-metal Saw Blade
13. One set of Tools with Tool Box
14. Instruction Manual
1. 2M Separate Material Roller Table
2. Variable Vise Pressure for Tube Cutting
