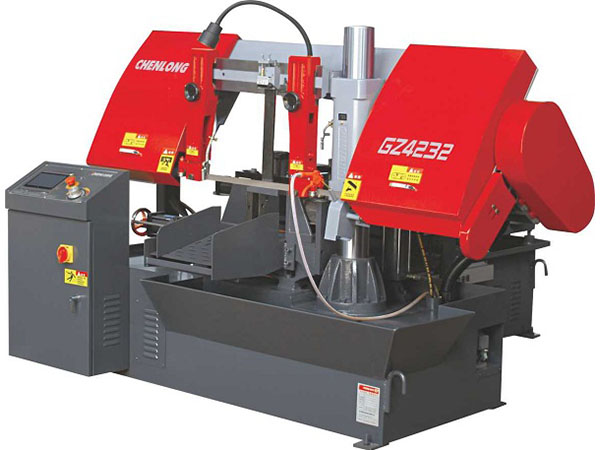

GZ-4232 Fully Automatic Band Saw Machine
Fully Automatic Band Saw Machine

This GZ-4232 fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Pivot Type
✔ Fully-automatic
✔ Hydraulic Downfeed

clsales@chenlongtech.com Get Latest Price

MODEL GZ4232
Cutting Capacity Ø320 mm Ø 12 3/5“
320 mm Wx320 mm H 12 3/5“x12 3/5“
Drive Capacity Main Motor 3.0 kW
Hydraulic Motor 0.75 kW
Coolant Pump 0.06 kW
Blade Speed 25, 45, 63, 81 m/min 98, 177, 248, 318 ft/m
Blade Size 34x1.1x4115 mm
Workpiece Clamping Hydraulic Vise
Blade Tensioning Manual
Main Drive Wormwheel Drive
Multiple Feed 500 mmx9 times
Table Height
Weight
Machine Size (LxWxH) 2060x2195x1450 mm 81 1/10"x86 2/5"x57 1/10"

Need to increase production rates on large jobs? The GZ4232 double column automatic feed bandsaw's hydraulic system can automatically clamp, cut, and feed bundles.High-production machine for tubes, profiles, and solids. Easy to operate, flexible in use, economical and extremely fast. Whatever you aim to saw, double column type high-performance and automatic band saws offer the solution you are looking for. Despite outstanding performance, our machines are all designed to offer maximum operating simplicity and space savings.

Features

  • P.L.C. control for all electric and hydraulic function.
  • Cuts up to 320 mm round and 320 x 320 mm rectangle at 90°.
  • Hydraulically controlled dual vise clamping system.
  • Desired number of parts controlled by electronic part counter.Carbide blade guides and rollers,Roller conveyor,Automatic blade breakage control,Hydraulic blade tension,Coolant system
  • 0.75 kW motor runs the low-pressure hydraulic system.
  • Cutting speed range is 25/45/63/81 m/min
  • Accepts a standard 34x1.1x4115 mm blade for speed and precision.
  • Available in 380-volt 3-phase models (Voltage can be customized make base on different country ).
  • touchscreen programmer is easy to use, so you can get to work right away.
  • Feed system uses digital encoders for precise material placement.
  • Hydraulic large-capacity bundling system clamps the material tight to ensure a consistent cut across all of the pieces.
  • Programmer can run in manual or automatic mode.
  • Power blade cleaning brush and coolant system keep the saw clean and make blades last longer.
  • In case a blade breaks, automatic blade shut-off protects your safety.
  • Bright halogen work light lets you clearly see what the machine’s doing.
  • Covered by a 1-year parts warranty.

1. Power Blade Cleaning Brush
2. LED Work Light
3. Automatic Feed Roller
4. NC Control
5. Security Switch
6. One Piece of Bi-metal Saw Blade
7. One Set of Tools with Tool Box
8. Instruction Manual

1. 2M Separate Material Roller Table
2. Variable Vise Pressure for Tube Cutting
3. Automatic Chip Conveyor
4. Hydraulic Blade Tension
5. Inverter
