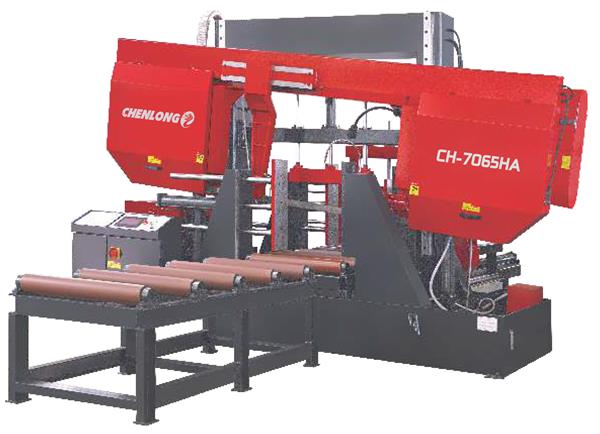

This CH-7065HA fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Gantry Type
✔ Fully-automatic
✔ Hydraulic Downfeed
MODEL | CH-7065HA | |||
Cutting Capacity | 0° | ● | φ650mm | 25 3/5" |
0° | ▅ | 700Wx650H | 27 5/9"x25 3/5" | |
Drive Capacity | Main Motor | 7.5KW | ||
Hydraulic Motor | 1.5KW | |||
Coolant Pump | 0.09KW | |||
Blade Speed | 20~90m/min by inverter | 66~295ft/m | ||
Blade Size | 54x1.6x8160mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Manual | |||
Main Drive | Wormwheel Drive | |||
Multiple Feed | 1000mmx9times | |||
Work Vise | Hydraulic | |||
Table | ||||
Weight | ||||
Machine Size (LxWxH) | 3700x1300x2600mm | 145 2/3"x51 1/6"x102 3/8" |
The CH-7065HA Gantry type automatic feed bandsaw's hydraulic system can automatically clamp, cut, feed bundles,and automatic return, saves time and smoothly manages the whole cutting process, including transitions. The durable steel frame maintains accuracy over years of hard use .this CHENLONG automatic band saw can cut different kinds steel ,alloys and aluminum.Singly, in bundles or fixed lengths. Whatever you aim to saw, Gantry type high-performance and automatic band saws offer the solution you are looking for.
Features
1. Blade Cleaning Brush
2. LED Work Light
3. Automatic Feed Roller
4. NC Control
5. Inverter
6. Security Switch
7. One piece of Bi-metal Saw Blade
8. One set of Tools with Tool Box
9. Instruction Manual
1. 2m Separate Material Roller Table
2. Variable Vise Pressure for Tube Cutting
3. Automatic Chip Conveyor
4. Hydraulic Blade Tension
