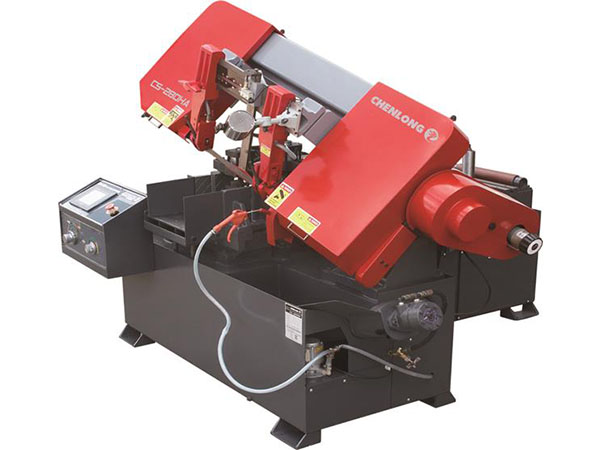

This CS-280HA fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace hacksaws and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Pivot Type
✔ Fully-automatic
✔ Hydraulic Downfeed
MODEL | CS-280HA | |||
Cutting Capacity | 0° | ● | Ø280 | Ø11" |
0° | ▅ | 320 mm Wx250 mm H | 13 6/10"x9 5/6" | |
Drive Capacity | Main Motor | 2.2 kW | ||
Hydraulic Motor | 0.75 kW | |||
Coolant Pump | 0.06 kW | |||
Blade Speed | 20~90 m/min | 66~295 ft/m | ||
Blade Size | 27x0.9x3505 mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Manual | |||
Main Drive | Wormwheel Drive | |||
Multiple Feed | 400 mmx9 times | |||
Table Height | ||||
Weight | 1300 kg | |||
Machine Size (LxWxH) | 2400x2050x1400 mm | 94 1/2"x80 7/10"x55 1/8" |
The CS-280HA Pivot type automatic feed bandsaw's hydraulic system can automatically clamp, cut, and feed bundles,to increase production rates on large jobs . Economical, energy-efficient machine for tubes, profiles, and solids. For both automatic cutting and for one-off cuts. this CHENLONG automatic band saw can cut all kinds steel , alloys and aluminum. Singly, in bundles or fixed lengths. Whatever you aim to saw,CS-280HA Pivot type high-performance and automatic band saws offer the solution you are looking for.
Features
1. Power Blade Cleaning Brush
2. LED Work Light
3. Automatic Feed Roller
4. Automatic Work Height Control
5. Automatic Chip Conveyor
6. 2M Separate Material Roller Table
7. PLC Control
8. Hold Down Device for Bundle Cutting
9. Security Switch
10. One piece of Bi-metal Saw Blade
11. One set of Tools with Tool Box
12. Instruction Manual
1. 2M Separate Material Roller Table
2. Variable Vise Pressure for Tube Cutting
