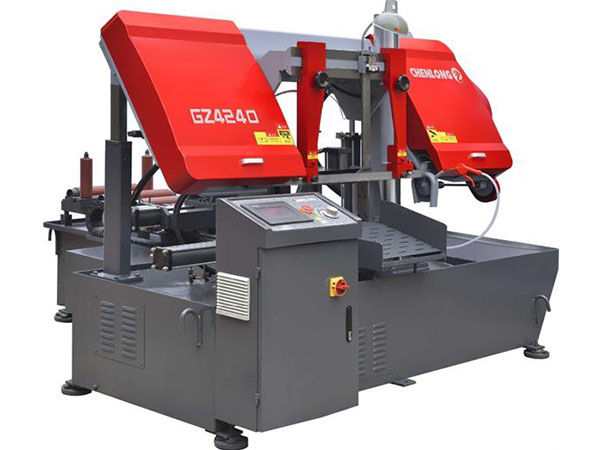

This GZ-4240 fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Double Column Type
✔ Fully-automatic
✔ Hydraulic Downfeed
MODEL | GZ-4240 | |||
Cutting Capacity | 0° | ● | Ø400 mm | Ø 15 3/4“ |
0° | ▅ | 400 mm Wx400 mm H | 15 3/4“x15 3/4“ | |
Drive Capacity | Main Motor | 4.0 kW | ||
Hydraulic Motor | 0.75 kW | |||
Coolant Pump | 0.06 kW | |||
Blade Speed | 19, 30, 50, 65, 90 m/min | 62, 98, 164, 213, 295 ft/m | ||
Blade Size | 34x1.1x4650 mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Manual | |||
Main Drive | Wormwheel Drive | |||
Multiple Feed | 500 mmx9 times | |||
Table Height | ||||
Weight | ||||
Machine Size (LxWxH) | 2265x2200x1550 mm | 89 1/6"x86 3/5"x61" |
The GZ4240 double column automatic feed bandsaw's hydraulic system can automatically clamp, cut, and feed bundles. The heavy steel frame on this 3 phase automatic bandsaw maintains accuracy.The automatic feed will help reduce scrap, labor costs, and errors, while the simple design and good quality components will ensure easy service and reduced down-time.The carbide blade guides and bearing are to promote longevity.
Features
1. Power Blade Cleaning Brush
2. LED Work Light
3. Automatic Feed Roller
4. NC Control
5. Security Switch
6. One Piece of Bi-metal Saw Blade
7. One Set of Tools with Tool Box
8. Instruction Manual
1. 2M Separate Material Roller Table
2. Variable Vise Pressure for Tube Cutting
3. Automatic Chip Conveyor
4. Hydraulic Blade Tension
5. Inverter

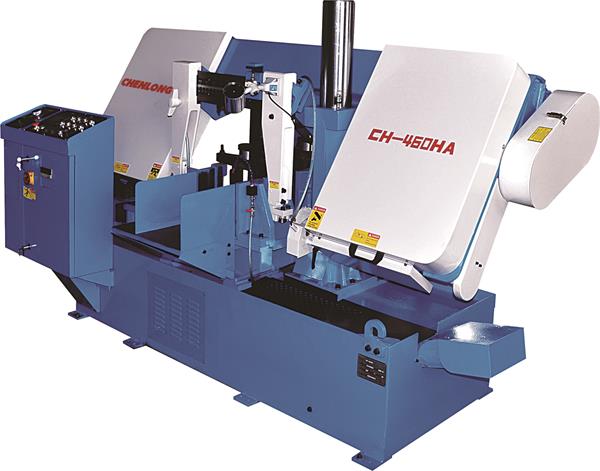

This CH-460HA fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact constructi...

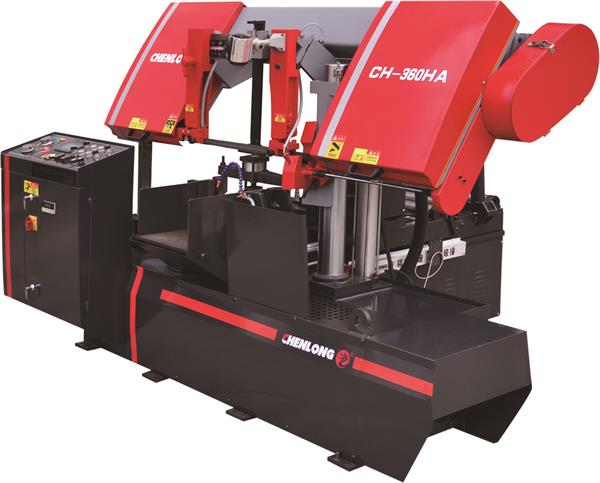

This CH-360HA fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact constructi...

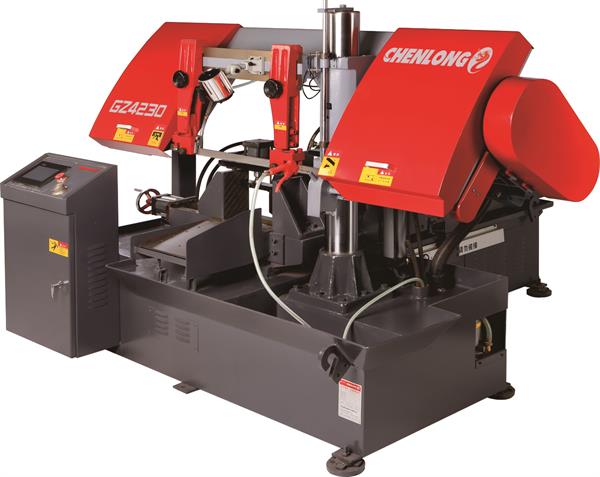

This GZ4230 fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction...

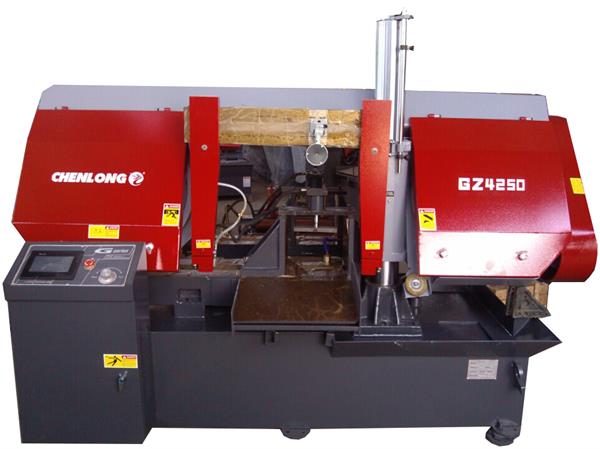

This GZ-4250 fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact constructio...

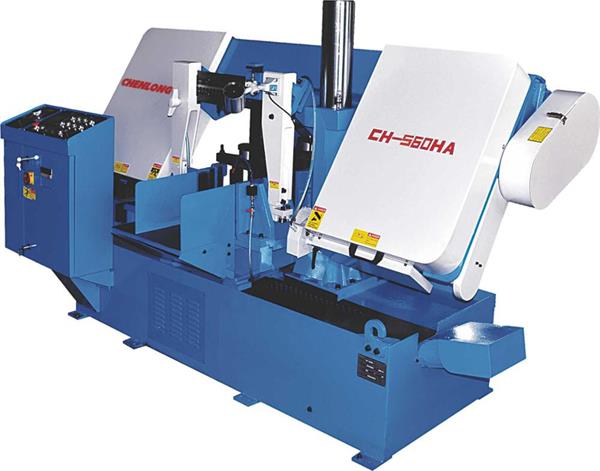

This CH-560HA fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact constructi...

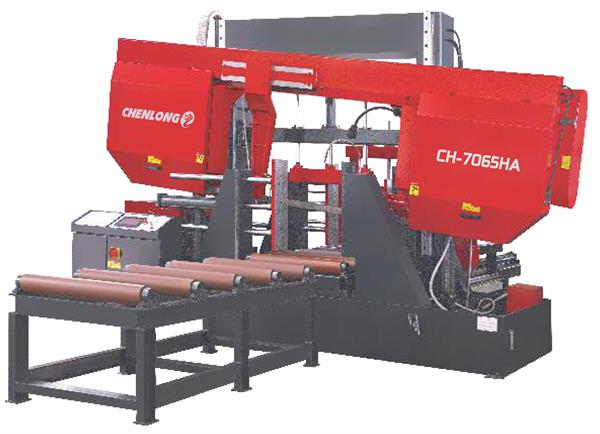

This CH-7065HA fully automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construct...
