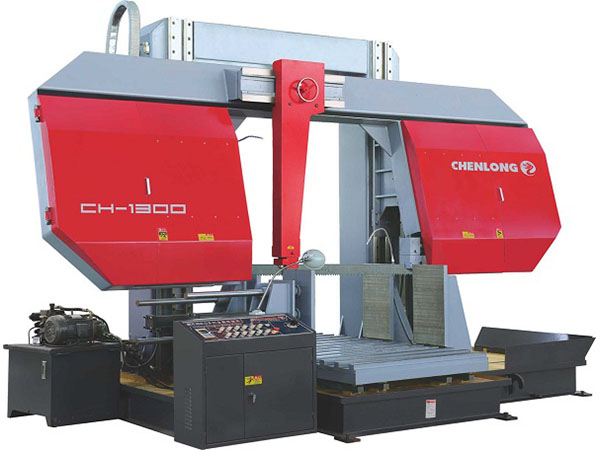

This CH-1300 Gantry type semi-automatic band saw features a gantry type dual-column design and a built in coolant system. In keeping with an exceptionally high standard of machine quality, this Gantry type band saw incorporates infinitely variable band speed for optimum cutting results.it is Heavy-duty production band saw models for solid forgings, slabs, profiles, molds or bundled material.
Accepts a standard 67x1.6x11180 mm blade.

Features

• 15 to 60 m/min variable speed.
• Inverter-driven speed system is infinitely adjustable. You can fine-tune it to fit a given material.
• Mighty 15 kW motor runs on 380-volt 3-phase power,Also customized voltage for different customer.
• Hydraulic clamping vise and Hydraulic shuttle table feeding material save you time during production runs.
• Saw frame feed forward on precision linear guides also helps the saw make high-quality cuts.
• Hydraulically driven table for slabs and forged blanks
• Hydraulic blade tension device allows you to set the tension easily.
• Includes a 2-meter free drive roller table .
• Fully-welded steel construction adds to the saw’s structural strength.
• Bright halogen work light lets you clearly see what the machine’s doing.
• This Gantry type semi-automatic bandsaw cutting capacity is up to a 1300x1300 mm.
• CHENLONG Cover a 1-year parts warranty.

1. Blade Cleaning Brush
2. LED Work Light
3. Saw Frame Height Selector Gauge
4. 2m Power Material Roller Table
5. Hydraulic Blade Tension
6. Laser Projector
7. Inverter
8. Security Switch
9. One Piece of Bi-metal Saw Blade
10. One Set of Tools with Tool Box
11. Instruction Manual

1. Variable Vise Pressure for Tube Cutting
2. Automatic Chip Conveyor
3. 2m Separate Material Roller Table
4. Hydraulic Shuttle Table Feeding (Standard with 2m Material Roller Table)
