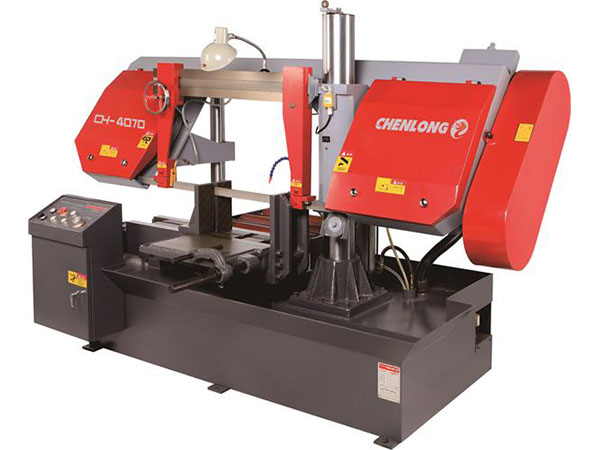

This CH-4070 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Double Column Type
✔ Semi-automatic
✔ Hydraulic Downfeed
MODEL | CH-4070 | |||
Cutting Capacity | 0° | ● | Ø400 mm | Ø15 3/4 " |
0° | ▅ | 700 mm Wx400 mm H | 27 4/7" Wx15 3/4" H | |
Drive Capacity | Main Motor | 4.0 kW | ||
Hydraulic Motor | 0.75 kW | |||
Coolant Pump | 0.06 kW | |||
Blade Speed | 16, 25, 42, 55, 67 m/min | 62, 98, 165, 216, 263 fpm | ||
Blade Size | 41x1.3x5080 mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Manual | |||
Main Drive | Wormwheel Drive | |||
Table Height | 620 mm | |||
Weight | ||||
Machine Size (LxWxH) | 2465x1200x1730 mm | 97"x47 1/4"x68 1/10" |
CH-40 series semi-automatic band saw include model CH-400 and CH-4070.These are machines which should not be missing from any workshop. Any producer with different sawing jobs to perform will achieve perfect and cost-effective results with these semi-automatic band saws. These models are the optimum solution for economical processing . And these models also lend themselves ideally to integration into existing sawing lines.
Features
1. Blade Cleaning Brush
2. LED Work Light
3. Saw Frame Height Selector Gauge
4. Out Feed with Auxiliary Plate Table
5. Length Stop
6. 1m Separate Material Roller Table
7. Security Switch
8. One Piece of Bi-metal Saw Blade
9. One Set of Tools with Tool Box
10. Instruction Manual
1. Laser Projector
2. Hydraulic Blade Tension
3. 2m Power Separate Material Roller Table
4. 2m Seperate Material Roller Table
