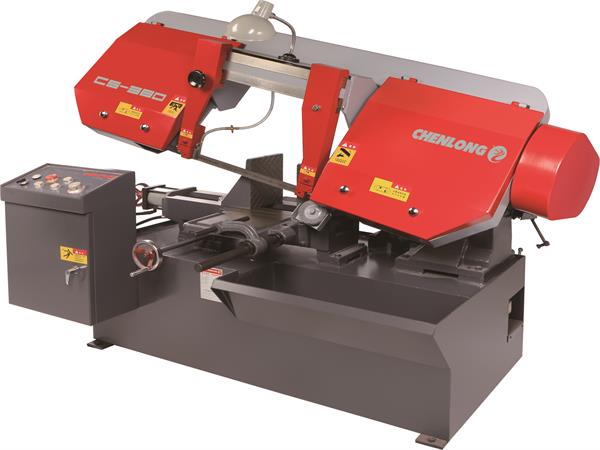

This CS-380 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Pivot Type
✔ Semi-automatic
✔ Hydraulic Downfeed
MODEL | CS-380 | |||
Cutting Capacity | 0° | ● | Ø380 mm | Ø15" |
0° | ▅ | 400 mm Wx250 mm H | 15 3/4" Wx10" H | |
Drive Capacity | Main Motor | 3.0 kW | ||
Hydraulic Motor | 0.75 kW | |||
Coolant Pump | 0.06 kW | |||
Blade Speed | 20/40/60/75 m/min | 66, 131, 197, 246 fpm | ||
Blade Size | 34x1.1x4115 mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Manual | |||
Main Drive | Wormwheel Drive | |||
Table Height | 640 mm | |||
Weight | ||||
Machine Size (LxWxH) | 2000x1160x1310 mm | 78 3/4"x45 3/43"x51 4/7" |
This semi-automatic band saw can cut large stock all day long. A auxiliary table takes the effort out of moving materials. The steel frame reduces vibrations and ensures accuracy.
Features
1. Blade Cleaning Brush
2. LED Work Light
3. Manual Feed Roller
4. Manual Work Control
5. Length stop
6. Out Feed with Auxiliary Plate Table
7. Roller Rack
8. Security Switch
9. One Piece of Bi-metal Saw Blade
10. One Set of Tools with Tool Box
11. Instruction Manual
1. Hold-down Device for Bundle Cutting
2. 2m Separate Material Roller Table
3. Inverter

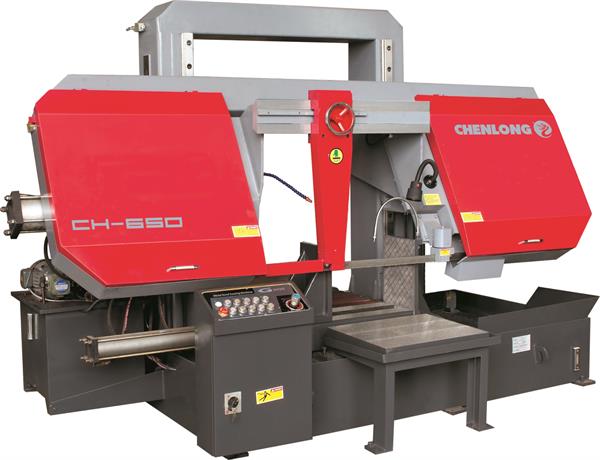

This CH-650 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction,...

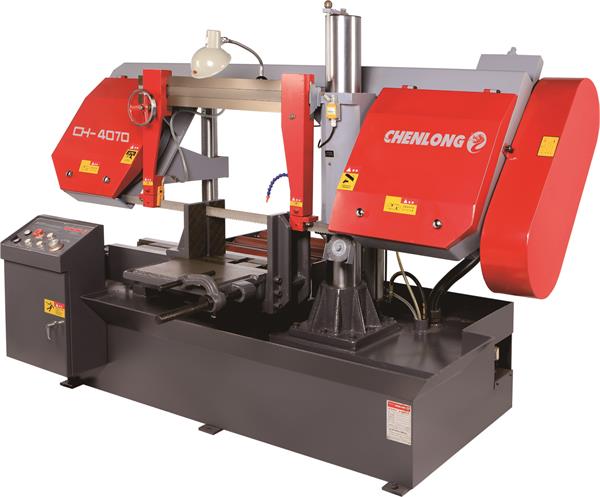

This CH-4070 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction...

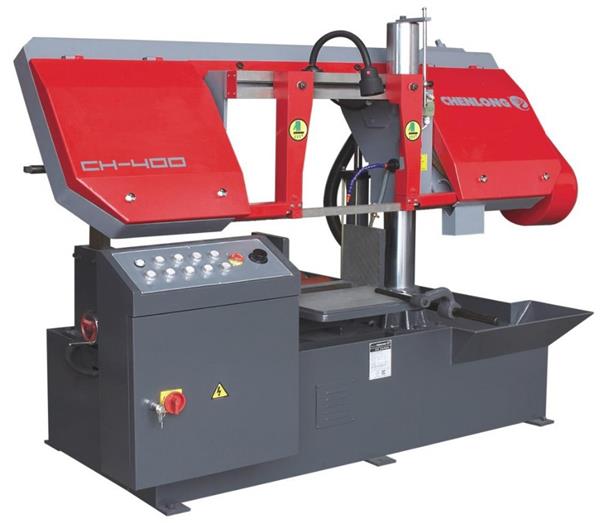

This CH-400 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction,...

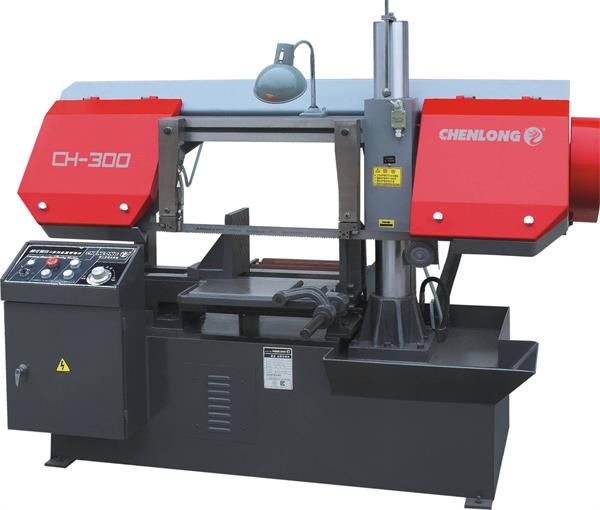

This CH-300 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction,...

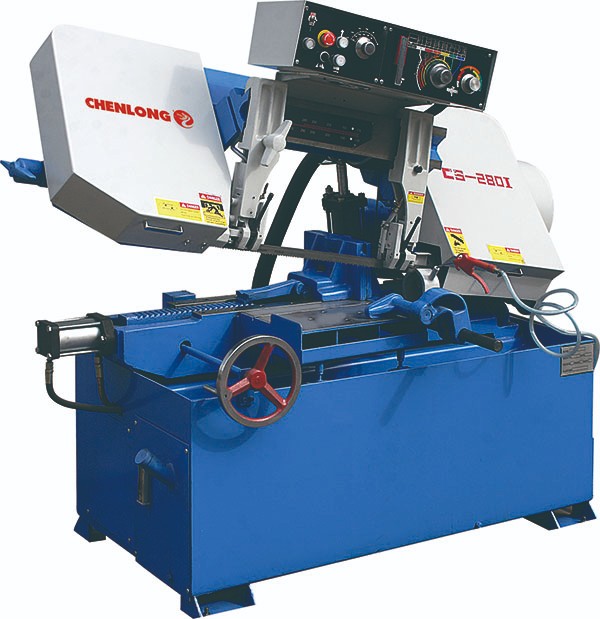

This CS-280Ⅰ semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction...

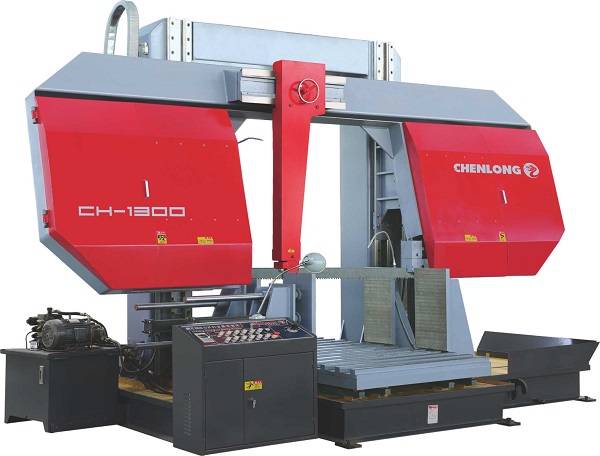

This CH-1300 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction...
