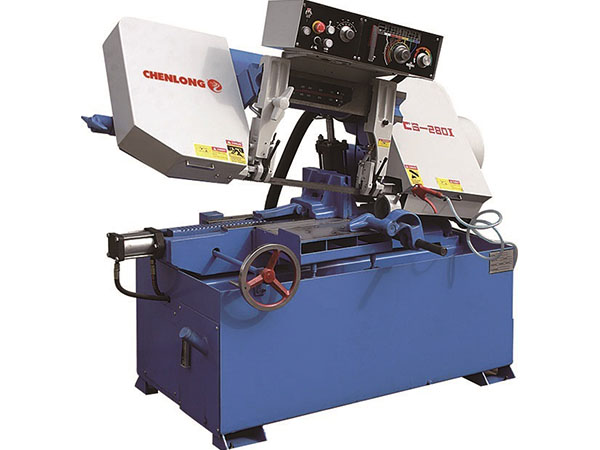

CS-280Ⅰ Semi-Automatic Band Saw Machine
Semi-Automatic Band Saw Machine

This CS-280Ⅰ semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Pivot Type
✔ Semi-automatic
✔ Hydraulic Downfeed

clsales@chenlongtech.com Get Latest Price

MODEL CS-280Ⅰ
Cutting Capacity Ø280mm Ø 11"
350mm Wx250mm H 13 3/4" Wx9 7/8" H
Drive Capacity Main Motor 2.2 kW
Hydraulic Motor 0.75 kW
Coolant Pump 0.06 kW
Blade Speed 27, 40, 54, 68, 80 m/min 89, 131, 177, 223, 262 fpm
Blade Size 27x0.9x3505 mm
Workpiece Clamping Hydraulic Vise
Blade Tensioning Manual
Main Drive Wormwheel Drive
Table Height 690 mm
Weight
Machine Size (LxWxH) 1800x1050x1550 mm 70 7/8"x41 1/3"x61"

This semi-automatic band saw can cut large stock all day long. A auxiliary table takes the effort out of moving materials. The steel frame reduces vibrations and ensures accuracy. A CHENLONG band saw is a clear-cut, dependable investment every time - because all the important components are part of the standard equipment.
Features

  • 350x250 mm cutting capacity.
  • Minimal machine set-up and downtimes ,Extreme operating and maintenance simplicity
  • Accepts a standard 27x0.9x3505 mm blade .
  • Stop rod makes sure that your material will stop at the same length everytime to deliver repeatable results.
  • Comes standard with blade cleaning brush
  • Adjust the belt on the pulley to change speed in the range 25/30/45/60/80 m/min.
  • The saws with come with Stepless regulation system. You can fine-tune it to fit a given material.
  • 2.2 kW motor runs on 380-volt 3-phase power,Also customized voltage for different customer.
  • Carbide blade guide system keeps the blade straight
  • Fully-welded steel construction adds to the saw’s structural strength.
  • CHENLONG Covered by a 1-year parts warranty.
  • Coolant system
  • Manual Feed roller device

1. Blade Cleaning Brush
2. LED Work Light
3. Manual Feed Roller
4. Manual Work Height Control
5. Length stop
6. Out Feed with Auxiliary Plate Table
7. Separate Material Roller Table
8. Security Switch
9. One Piece of Bi-metal Saw Blade
10. One Set of Tools with Tool Box
11. Instruction Manual

1. Hold-Down Device for Bundle Cutting
2. 2m Separate Material Roller Table

Related Products
  • CH-650 Semi-Automatic Band Saw Machine

    CH-650 Semi-Automatic Band Saw Machine

    This CH-650 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction,...

  • CH-4070 Semi-Automatic Band Saw Machine

    CH-4070 Semi-Automatic Band Saw Machine

    This CH-4070 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction...

  • CH-400 Semi-Automatic Band Saw Machine

    CH-400 Semi-Automatic Band Saw Machine

    This CH-400 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction,...

  • CH-300 Semi-Automatic Band Saw Machine

    CH-300 Semi-Automatic Band Saw Machine

    This CH-300 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction,...

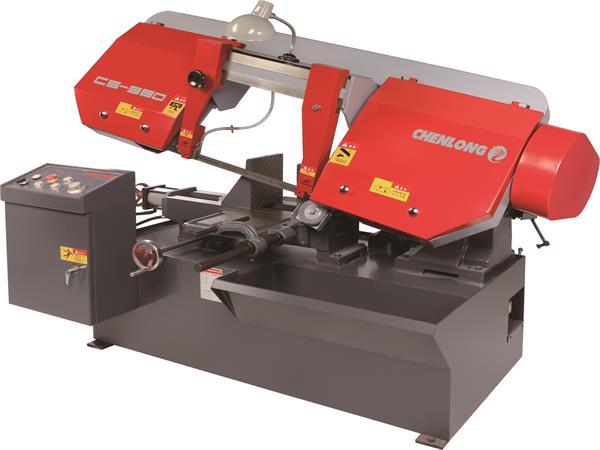

  • CS-380 Semi-Automatic Band Saw Machine
