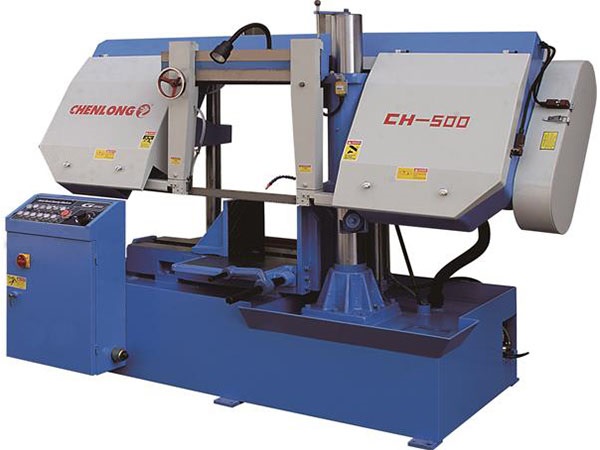

CH-500 Semi-Automatic Band Saw Machine
Semi-Automatic Band Saw Machine

This CH-500 semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Double Column Type
✔ Semi-automatic
✔ Hydraulic Downfeed

clsales@chenlongtech.com Get Latest Price

MODEL CH-500
Cutting Capacity Ø500 mm Ø19 2/3 "
500 mm Wx500 mm H 19 2/3 W "x19 2/3 " H
Drive Capacity Main Motor 4.0 kW
Hydraulic Motor 0.75 kW
Coolant Pump 0.06 kW
Blade Speed 18, 30, 50, 70 m/min 70, 118, 196, 275 fpm
Blade Size 41x1.3x5450 mm
Workpiece Clamping Hydraulic Vise
Blade Tensioning Manual
Main Drive Wormwheel Drive
Table 510 mm
Weight
Machine Size (LxWxH) 2635x1210x1885 mm 103 3/4"x47 5/8"x74 1/5"

This band saw features a more rigid and compact design and a built in coolant system. In keeping with an exceptionally high standard of machine quality, this CHENLONG saw incorporates infinitely variable band speed and cutting force for optimum cutting results. The semi-automatic operation will speed production, while the simple design and brand-name components will ensure easy service and reduced down-time. The blade guides with bearing and carbide to promote longevity. this saw with hydro-mechanical blade tension.
Features

  • 500x500 mm cutting capacity.
  • Accepts a standard 41x1.3x5450 mm blade .
  • Adjust the belt position on the pulley to change speed in the range 18/30/50/70 m/min.
  • Infinitely variable adjustment of the cutting feed. You can fine-tune it to fit a given material.
  • 4 kW motor runs on 380-volt 3-phase power,Also customized voltage for different customer.
  • carbide blade guide system keeps the blade straight
  • Minimal machine set-up and downtimes,Extreme operating and maintenance simplicity
  • Stop rod makes sure that your material will stop at the same length everytime to deliver repeatable results.
  • Includes a 1.5-meter roller table with a rack and pinion conveyor to move the heavy stock.
  • Fully-welded steel construction adds to the saw’s structural strength.
  • CHENLONG Covered by a 1-year parts warranty.
  • Comes standard with blade cleaning brush

1. Blade Cleaning Brush
2. LED Work Light
3. Saw Frame Height Selector Gauge
4. Out Feed with Auxiliary Plate Table
5. Length Stop
6. 1m Separate Material Roller Table
7. Security Switch
8. One Piece of Bi-metal Saw Blade
9. One Set of Tools with Tool Box
10. Instruction Manual

1. Laser Projector
2. Hydraulic Blade Tension
3. 2m Power Separate Material Roller Table
4. 2m Seperate Material Roller Table
