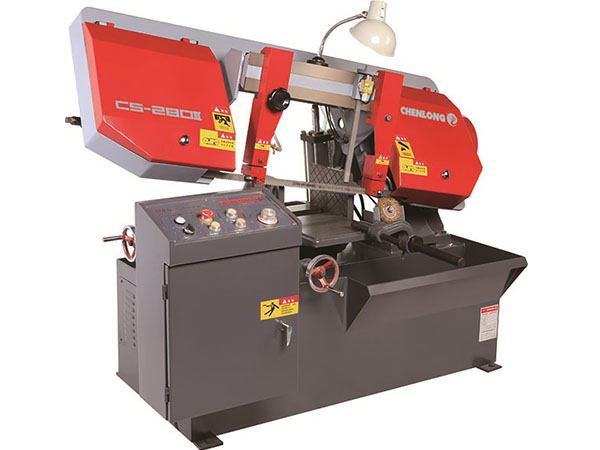

This CS-280Ⅱ semi-automatic band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Pivot Type
✔ Semi-automatic
✔ Hydraulic Downfeed
MODEL | CS-280 II | |||
Cutting Capacity | 0° | ● | Ø280 mm | Ø 11" |
0° | ▅ | 300 mm Wx220 mm H | 11 4/5" Wx8 2/3" H | |
Drive Capacity | Main Motor | 2.2 kW | ||
Hydraulic Motor | 0.75 kW | |||
Coolant Pump | 0.06 kW | |||
Blade Speed | 25, 35, 45, 60, 80 m/min | 82, 115, 148, 197, 262 fpm | ||
Blade Size | 27x0.9x3505 mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Manual | |||
Main Drive | Wormwheel Drive | |||
Table Height | 620 mm | |||
Weight | ||||
Machine Size (LxWxH) | 1770x1130x1160 mm | 70"x45"x45 2/3" |
This semi-automatic band saw can cut large stock all day long. A auxiliary table takes the effort out of moving materials. The steel frame reduces vibrations and ensures accuracy. For the job shop or low production service center. Cost-effective cutting of tubes, profiles, and solids. The optimum solution for processing of low piece numbers and one-off cuts.
Features
1. Blade Cleaning Brush
2. LED Work Light
3. Manual Work Height Control
4. Length Stop
5. Out Feed with Auxiliary Plate Table
6. Separate Material Roller Table
7. Security Switch
8. One Piece of Bi-metal Saw Blade
9. One Set of Tools with Tool Box
10. Instruction Manual
1. Hold-Down Device for Bundle Cutting
2. 2m Separate Material Roller Table
3. Inverter
