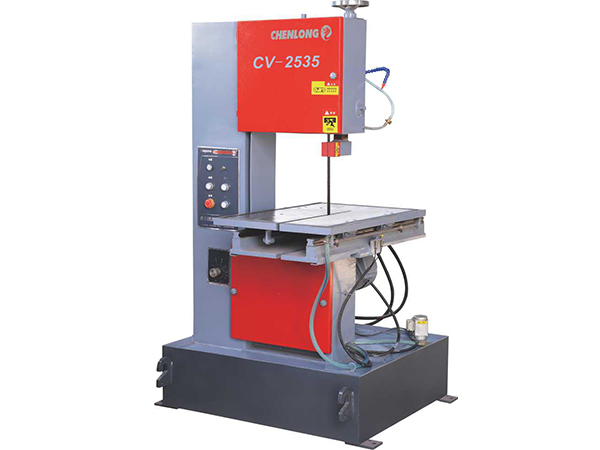

The CV-2535 vertical band saw machine is extremely compact . There is a suitable size for almost all applications. The vertical band saw is available with a movable mounting table. CHENLONG offers cutting heights up to 250 and table lengths for 1000 mm, 2000 mm, 3000 mm and 6000 mm long saw cuts as standard features. The CV-2535 model optional equipment with a mobile mounting table is particularly suitable for making short cuts in small, compact blocks.

Features

• 2.2 kW motor operates on 380V three-phase power.
• 350 mm throat depth and 250 mm material opening (maximum thickness).
• 3 blade speeds, ranging from 30 to 75 m/min, allow you to adjust to suit the material and project, making quality cuts and prolonging blade life.
• The chenlong vertical band saw accepts standard blade widths 34 mm to make even the most intricate cuts.
• Industrial-grade bearings and drive wheels ensure that the machine will last for many years of trouble-free use.
• Laser-assisted material alignment
• Chenlong covers this vertical metal band saw with a 1-year parts warranty.

1. Blade Cleanning Brush
2. LED Work Light
3. Security Switch
4. One Piece of Bi-metal Saw Blade
5. One Set of Tools with Tool Box
6. Operation Manual

1. Hydraulic Top Pack
2. Automatic Chip Conveyor
3. Inverter
4. PLC Control
5. CV Series Can be Designed According to Customer's Required Cutting Size
6. Hydraulic Blade Tension
7. Saw Guide Elevation is Hydraulically Operated 8. Laser Projector
