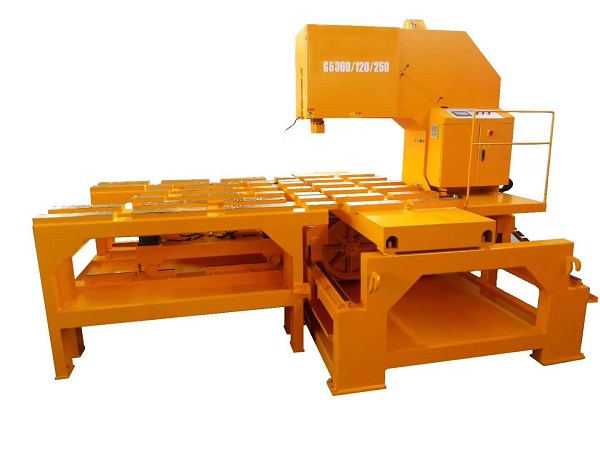

This G5360/120/250 vertical band saw machine is an equipment for cutting metal sheet materials with bi-metal band saw blades, featuring narrow kerf, high precision,material-saving, energy-saving, easy operation etc.
clsales@chenlongtech.com Get Latest PriceMODEL | G5360/120/250 | ||
Cutting Capacity | Height | 600 mm | 23 5/8" |
Depth | 1200 mm | 47 1/4" | |
Length | 2500 mm | 98" | |
Drive Capacity | Main Motor | 5.5 kW | |
Hydraulic motor Coolant Pump | 0.75 kW 0.06 kW | ||
Blade Size | 54x1.6 mm | ||
Blade Speed | 20~65 m/min by Inverter | 66~213 fpm by Inverter |
The G5360/120/250 vertical band saw machine is extremely compact and, thanks to its practical modular structure, available in several variants. There is a suitable size for almost all applications. The vertical band saw is available with a mobile saw frame and a fixed table. CHENLONG G5360/120/250 vertical band saw
offers cutting heights up to 1000 mm and table lengths can customized by user requirement.
Features
1. Blade Cleanning Brush
2. LED Work Light
3. Security Switch
4. One Piece of Bi-metal Saw Blade
5. One Set of Tools with Tool Box
6. Operation Manual
1. Hydraulic Top Pack
2. Automatic Chip Conveyor
3. Inverter
4. PLC Control
5. Hydraulic Blade Tension
6. Saw Guide Elevation is Hydraulically Operated
7. Laser Projector
