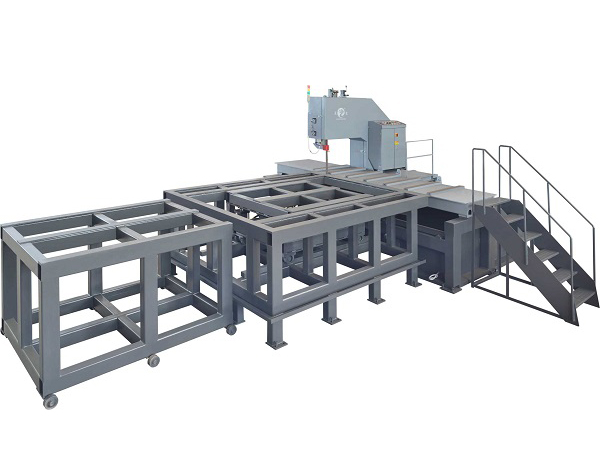

This G5340/80/200 vertical band saw machine is an equipment for cutting metal sheet materials with bi-metal band saw blades, featuring narrow kerf, high precision,material-saving, energy-saving, easy operation etc.
clsales@chenlongtech.com Get Latest PriceMODEL | G5340/80/200 | ||
Cutting Capacity | Height | 400 mm | 15 3/4" |
Depth | 800 mm | 31 1/2" | |
Length | 2000 mm | 78 3/4" | |
Drive Capacity | Main Motor | 5.5 kW | |
Hydraulic motor | 0.75 kW | ||
Coolant Pump | 0.06 kW | ||
Blade Size | 54X1.6 mm | ||
Blade Speed | 20~65 m/min | 66~213 fpm |
The G5340/80/200 vertical band saw machine is a suitable size for almost all applications. The vertical band saw is available with a mobile saw frame and hydraulic lift table for feeding material,the stroke can be customized as user requirement. CHENLONG G5340/80/200 vertical band saw machine offers cutting heights up to 400 and table lengths for 2000 mm long saw cuts as standard features.
Features
1. Blade Cleaning Brush
2. Work Light
3. Security Switch
4. Hydraulic lifting table
5. One Piece of Bi-metal Saw Blade
6. One Set of Tools with Tool Box
7. Operation Manual
1. Laser Projector
2. Automatic Chip Conveyor
3.PLC Control
4. Hydraulic Blade Tension
5. Saw Guide Elevation is Hydraulically Operated
6. Inverter
