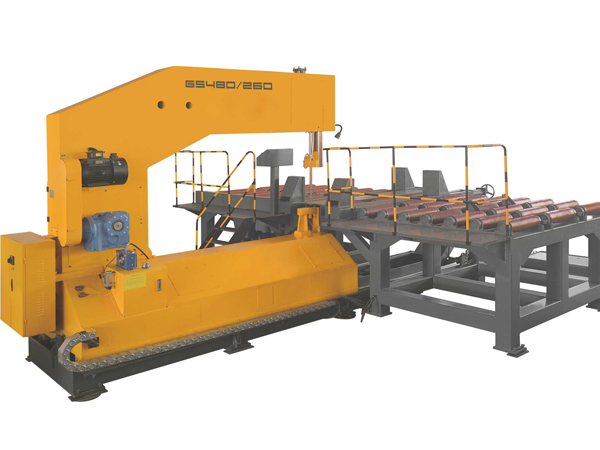

This G5480/260 vertical band saw machine is an equipment for cutting metal sheet materials with bi-metal band saw blades, featuring narrow kerf, high precision,material-saving, energy-saving, easy operation etc.
clsales@chenlongtech.com Get Latest PriceMODEL | G5480/260 | ||
Cutting Capacity | Height | 800 mm | 31 1/2" |
Depth | 2600 mm | 102 1/3" | |
Length | 3000 mm | 118 1/9" | |
Drive Capacity | Main Motor | 11 kW | |
Coolant Pump | / | ||
Blade Size | 54x1.6 mm | ||
Blade Speed | 20~65 m/min by Inverter | 66~213 fpm by Inverter |
The G5480/260 vertical band saw machine is extremely compact and, thanks to its practical modular structure, available in several length material requirement. The vertical band saw is available with a mobile saw frame and a fixed roller table. CHENLONG G5480/260 vertical band saw machine offers cutting heights up to 800 and table lengths for 2000 mm, 4000 mm, 6000 mm and 10000 mm long saw cuts as standard features.
Features
1. Blade Cleanning Brush
2. LED Work Light
3. Security Switch
4. One Piece of Bi-metal Saw Blade
5. One Set of Tools with Tool Box
6. Operation Manual
1. Hydraulic Top Pack
2. Automatic Chip Conveyor
3. Inverter
4. PLC Control
5. Hydraulic Blade Tension
6. Saw Guide Elevation is Hydraulically Operated
7. Laser Projector

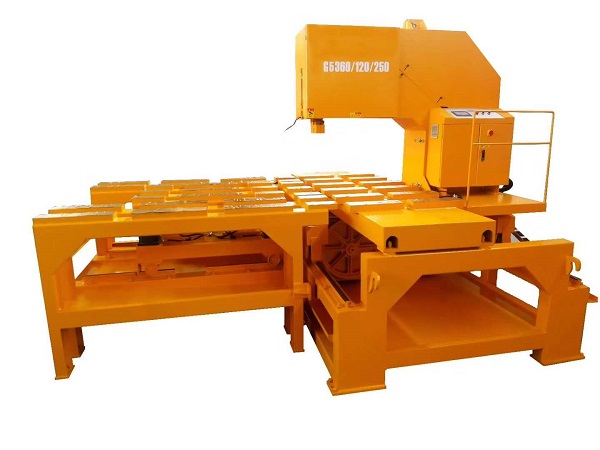

This G5360/120/250 vertical band saw machine is an equipment for cutting metal sheet materials with bi-metal band saw blades, featuring narrow kerf, h...

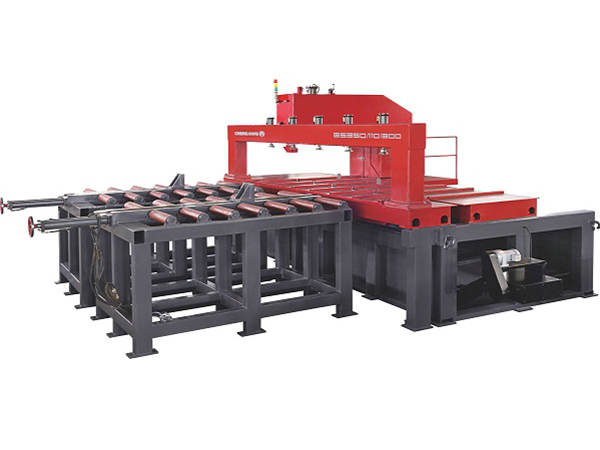

This G5350/110/300 vertical band saw machine is an equipment for cutting metal sheet materials with bi-metal band saw blades, featuring narrow kerf, h...
This G5340/80/200 vertical band saw machine is an equipment for cutting metal sheet materials with bi-metal band saw blades, featuring narrow kerf, hi...

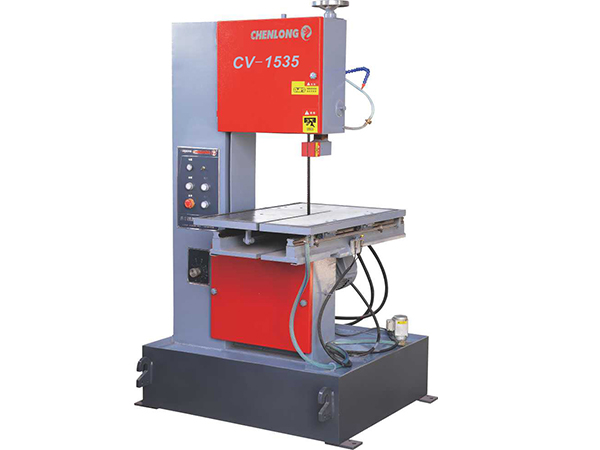

This CV-1535 vertical band saw machine is an equipment for cutting metal sheet materials with bi-metal band saw blades, featuring narrow kerf, high pr...
This CV-2535 vertical band saw machine is an equipment for cutting metal sheet materials with bi-metal band saw blades, featuring narrow kerf, high pr...

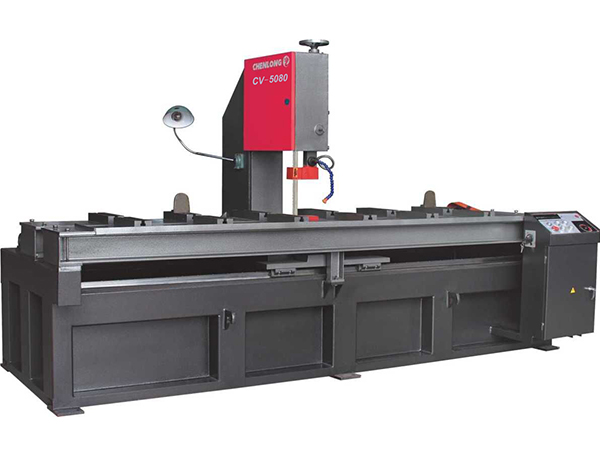

This CV-5080 vertical band saw machine is an equipment for cutting metal sheet materials with bi-metal band saw blades, featuring narrow kerf, high pr...
