This CH-300S miter band saw macine is an equipment for cutting metal materials with bi-metal band saw blades,

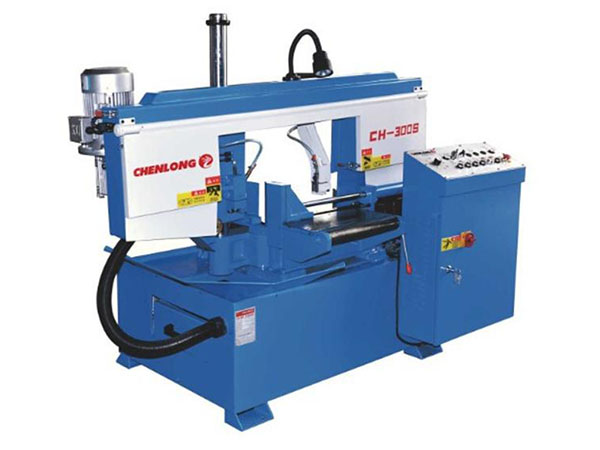

CH-300S Miter Band Saw Machine

This CH-300S miter band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Double Column Type
✔ Semi-Automatic
✔ Mitering Head
✔Hydraulic Downfeed

clsales@chenlongtech.com Get Latest Price

MODEL			CH-300S
Cutting Capacity	0°	●	φ300 mm	11 4/5"
	0°	▅	360 mm Wx300 mm H	14 1/6"x11 4/5"
	45°	●	φ240 mm	9 4/9"
	45°	▅	240 mm Wx300 mm H	9 4/9"x11 4/5"
	60°	●	φ130 mm	5 1/8"
	60°	▅	150 mm Wx300 mm H	5 9/10"x11 4/5"
Drive Capacity	Main Motor		2.2 kW
	Hydraulic Motor		0.75 kW
	Coolant Pump		0.06 kW
Blade Speed			20~80 m/min by inverter	66~262 ft/m by inverter
Blade Size			27x0.9x3650 mm
Workpiece Clamping			Hydraulic Vise
Blade Tensioning			Manual
Main Drive			Wormwheel Drive
Work Vise			Hydraulic
Table Height
Weight			780 kg
Machine Size (LxWxH)			2000x1250x1650 mm	78 3/4"x49 1/5"x65"

This CH-300S semi-automatic band saw features a strong dual-column design, hydraulic clamping , and a built in coolant system. this miter band saw incorporates infinitely variable band speed and cutting force for optimum cutting results. And like everything from CHENLONG, this band saw machine unbeatable in terms of speed, precision and quality.

Features

The full welding construction of the semi-automatic angle cutting band saw frame keeps vibrations to a minimum and results in angle cutting, accurate cuts and long blade life. The blade guides are carbide to promote longevity.
For miter cutting up 45° and 60°. For working pieces at varying angles, the sawing angle can be easily changed. Exceptional cost-to-performance ratio.
Saw frame adjustment (instead of vise adjustment) delivers more accurate cuts and doesn’t compromise the holding power of the vise.
Minimal machine set-up and downtimes
Frequency-controlled drive engineering
High cutting outputs
Frequency controlled saw drive
Hydraulic material clamping

1. Blade Cleaning Brush
2. LED Work Light
3. Manual Work Height Control
4. Inverter
5. Security Switch
6. One piece of Bi-metal Saw Blade
7. One set of Tools with Tool Box
8. Instruction Manual

1. 2m Separate Material Roller Table
