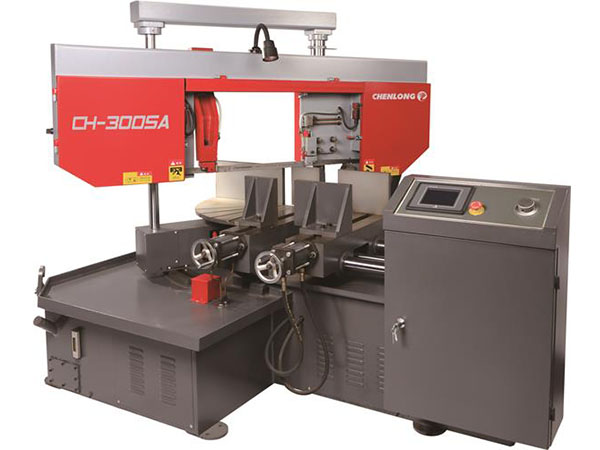

This CH-300SA miter band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace hacksaws and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Double Column Type
✔ Semi-Automatic
✔ Mitering Head
✔Hydraulic Downfeed
MODEL | CH-300SA | |||
Cutting Capacity | 0° | ● | Ø300 mm | Ø11 4/5" |
0° | ▅ | 360 mm Wx300 mm H | 14 1/6"x11 4/5" | |
45° | ● | Ø260 mm | Ø10 1/4" | |
45° | ▅ | 260 mm Wx300 mm H | 10 1/4"x11 4/5" | |
Drive Capacity | Main Motor | 3.0 kW | ||
Hydraulic Motor | 0.75 kW | |||
Coolant Pump | 0.06 kW | |||
Blade Speed | 20~110 m/min by inverter | 66~361 ft/m by inverter | ||
Blade Size | 34x1.1x4430 mm | |||
Workpiece Clamping | Hydraulic Vise | |||
Blade Tensioning | Manual | |||
Main Drive | Wormwheel Drive | |||
Table | 735 mm | |||
Weight | ||||
Machine Size (LxWxH) | 2160x2200x1950 mm | 85"x86 3/5"x76 7/9" |
This CH-300SA automatic miter band saw machine features a strong dual-column design, automatic material feed, a parts counter, hydraulic clamping & digital display of miter angle, and a built in coolant system. In keeping with an exceptionally high standard of machine quality, this Chenlong double column automatic angle cutting band saw incorporates infinitely variable band speed and cutting force for optimum cutting results. And like everything from CHENLONG, this automatic band saw machine unbeatable in terms of speed, precision and quality.
Features
1. Blade Cleaning Brush
2. LED Work Light
3. Automatic Feed Hydraulic Shuttle Vice Assembly
4. Automatic Work Height Control
5. NC Control
6. Inverter
7. Automatic Hydraulic Swiveling
8. Security Switch
9. One piece of Bi-metal Saw Blade
10. One set of Tools with Tool Box
11. Instruction Manual
1. 2m Separate Material Roller Table
This CH-600SA miter band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast c...

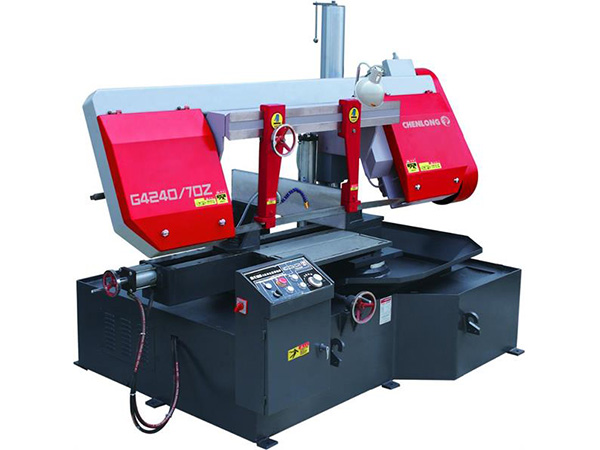

This G4240/70Z miter band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast ...

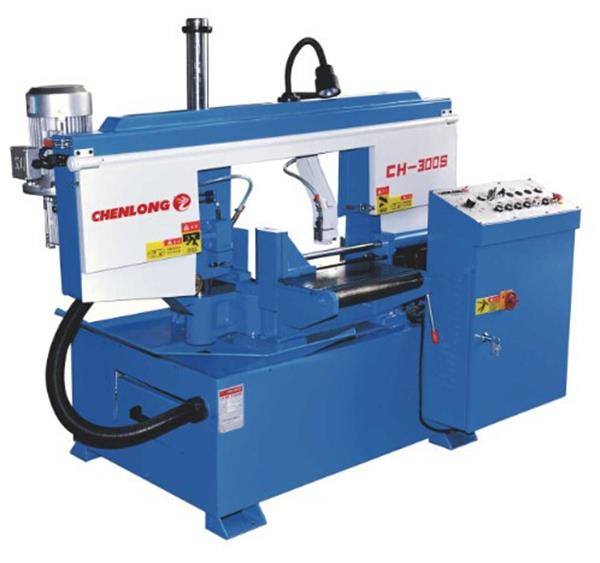

This CH-300S miter band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cu...
This CS-280S Miter Band Saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cu...

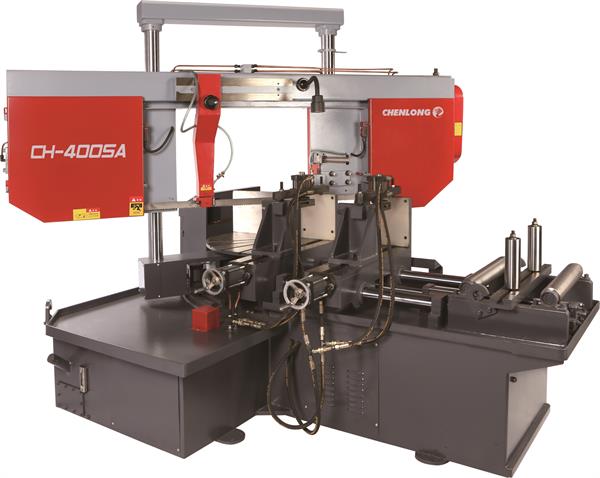

This CH-400SA miter band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast c...
