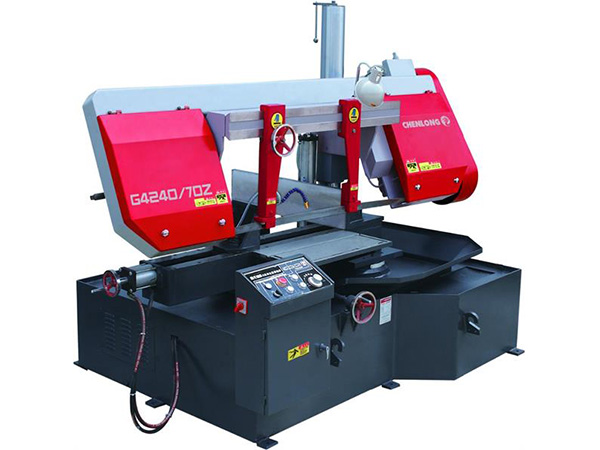

G4240/70Z Miter Band Saw Machine
Miter Band Saw Machine

This G4240/70Z miter band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Double Column Type
✔ Semi-Automatic
✔ Mitering Head
✔Hydraulic Downfeed

clsales@chenlongtech.com Get Latest Price

MODEL G4240/70Z
Cutting Capacity Ø400mm Ø15 3/4"
700 mm Wx400 mm H 27 5/9" Wx15 3/4" H
45° Ø400 mm Ø15 3/4"
45° 400 mm Wx400 mm H 15 3/4"Wx15 3/4" H
Drive Capacity Main Motor 4 kW
Hydraulic Motor 1.1 kW
Coolant Pump 0.06 kW
Blade Speed 20, 30, 43, 54, 65 m/min 66, 98, 141, 177, 213 fpm
Blade Size 41x1.3x5500 mm
Workpiece Clamping Hydraulic Vise
Blade Tensioning Manual
Main Drive Wormwheel Drive
Work Vise Hydraulic
Table Height 750 mm
Weight
Machine Size (LxWxH) 2650x1800x1950 mm 104 1/3"x70 7/8"x76 7/9"

G4240/70Z Double column semi-automatic band saw machine: Versatile perfection;this miter band saw machine are true all-cutting - tubes, profiles, and solids. Easy to operate, flexible in use, economical and extremely fast. All in all: Perfection - and at a surprisingly affordable price.

Features

  • 4.0 kW motor drive a wormwheel box,with cutting speed range 20/30/43/54/65 m/min.
  • Extreme operating and maintenance simplicity
  • Saw frame adjustment (instead of vise adjustment) delivers more accurate cuts and doesn’t compromise the holding power of the vise.

1. Blade Cleaning Brush
2. LED Work Light
3. Manual Work Height Control
4. Security Switch
5. One Piece of Bi-metal Saw Blade
6. One Set of Tools with Tool Box
7. Instruction Manual

1. 2m Separate Material Roller Table
2. Inverter
