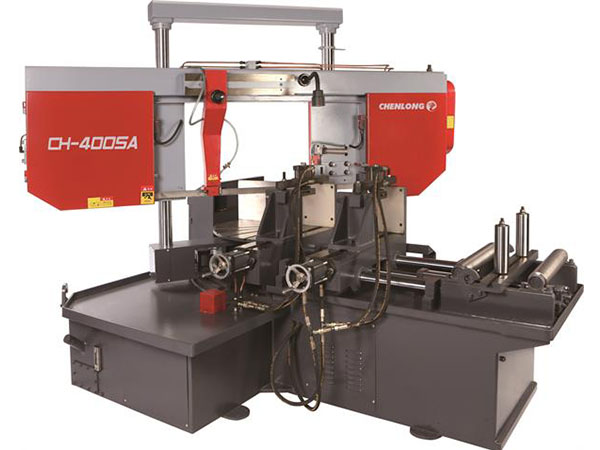

CH-400SA Miter Band Saw Machine
Miter Band Saw Machine

This CH-400SA miter band saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace hacksaws and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Double Column Type
✔ Semi-Automatic
✔ Mitering Head
✔Hydraulic Downfeed

clsales@chenlongtech.com Get Latest Price

MODEL CH-400SA
Cutting Capacity Ø400 mm 15 3/4"
400 mm Wx400 mm H 15 3/4"x15 3/4"
45° Ø350 mm 13 7/9“
45° 350 mm Wx400 mm H 13 7/9“x15 3/4"
Drive Capacity Main Motor 4.0 kW
Hydraulic Motor 0.75 kW
Coolant Pump 0.06 kW
Blade Speed 20~80 m/min by inverter 66~314 ft/m by inverter
Blade Size 41x1.3x5590 mm
Workpiece Clamping Hydraulic Vise
Blade Tensioning Manual
Main Drive Wormwheel Drive
Table 735 mm
Weight
Machine Size (LxWxH) 2915x2100x2180 mm 114 7/9"x82 2/3"x85 4/5"

This CH-400SA miter band saw machine features a strong dual-column design, automatic material feed, a parts counter, hydraulic clamping & digital display of miter angle, and a built in coolant system. In keeping with an exceptionally high standard of machine quality, this Chenlong double column automatic angle band saw incorporates infinitely variable band speed and cutting force for optimum cutting results. And like everything from CHENLONG, this automatic band saw machine unbeatable in terms of speed, precision and quality.

Features

  • For miter cutting up to 45°. NC control of angle setting and length measuring provides accurate and economic cutting of materials, from sections to high tensile solids.
  • This fully automatic angle cutting band saw to really get things moving. Particularly when it comes to classical series production such as cutting to fixed lengths and miter sawing in automatic mode.
  • Saw frame adjustment (instead of vise adjustment) delivers more accurate cuts and doesn’t compromise the holding power of the vise.
  • Extreme operating and maintenance simplicity
  • Infinitely variable band speed, 20–80 m/min (65–262"/min)
  • Coolant system
  • Hydraulic vice
  • Digital display of miter cutting angle
  • High-speed angle adjustment
  • Automatic blade breakage control

1. Blade Cleaning Brush
2. LED Work Light
3. Automatic Feed Hydraulic Shuttle Vice Assembly
4. Automatic Work Height Control
5. NC Control
6. Inverter
7. Automatic Hydraulic Swiveling
8. Security Switch
9. One piece of Bi-metal Saw Blade
10. One set of Tools with Tool Box
11. Instruction Manual

1. 2m Separate Material Roller Table
