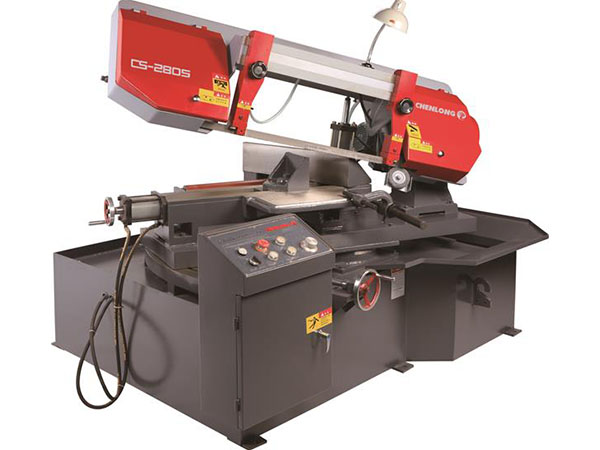

CS-280S Miter Band Saw Machine
Miter Band Saw Machine

This CS-280S Miter Band Saw machine is an equipment for cutting metal materials with bi-metal band saw blades, featuring compact construction, fast cutting speed, high precision, narrow kerf, less noise, easy operation etc.. It is an energy-saving product to replace reciprocating sawing machine and is widely used for cutting metal materials in various industries such as construction, automobile, transportation, bridge-building, ship-building etc.
✔ Pivot Type
✔ Semi-Automatic
✔ Mitering Head
✔Hydraulic Downfeed



clsales@chenlongtech.com Get Latest Price

MODEL CS-280S
Cutting Capacity Ø280 mm Ø11"
400 mm Wx200 mm H 15 3/4“ Wx7 7/8" H
45° Ø280 mm Ø11"
45° 220 mm Wx200 mm H 8 2/3" Wx7 7/8" H
Drive Capacity Main Motor 3 kW
Hydraulic Motor 0.75 kW
Coolant Pump 0.06 kW
Blade Speed 25, 35, 45, 60, 80 m/min 98, 137, 177, 236, 314 ft/m
Blade Size 34x1.1x3860 mm
Workpiece Clamping Hydraulic Vise
Blade Tensioning Manual
Main Drive Wormwheel Drive
Work Vise Hydraulic
Table 700 mm
Weight
Machine Size (LxWxH) 1900x1450x1350 mm 74 4/5"x57"x53 1/7"

To option chenlong CS-280S Pivot semi-automatic miter band saw machine is to make a secure investment in your future. Because we use nothing but the very best components and materials. And because the quality and durability of every one of our machines is assured through the very latest production methods and testing in our factory.

Features

  • The full welding construction of the saw frame keeps vibrations to a minimum and results in angle cutting, accurate cuts and long blade life. The blade guides are carbide to promote longevity.
  • Saw frame adjustment (instead of vise adjustment) delivers more accurate cuts and doesn’t compromise the holding power of the vise.
  • Extreme operating and maintenance simplicity
  • Hydraulic clamping of the mitre angle

1. Blade Cleaning Brush
2. LED Work Light
3. Manual Work Height Control
4. Security Switch
5. One Piece of Bi-metal Saw Blade
6. One Set of Tools with Tool Box
7. Instruction Manual

1. 2m Separate Material Roller Table
2. Inverter
